Buy asphalt premix plant bag filter

  • 1 - 1 Sets
    $156,000.00
  • >=2 Sets
    $150,000.00
Model Number:
LB
Production Capacity:
60-400t/h
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
We can provide OEM/ODM service. (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
319-945kw
Weight:
50t-130t
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Henan, China
Brand Name:
Other
Voltage:
220V/380V
Certification:
ISO.CE
Dimension(L*W*H):
16000*3000*4200mm
Applicable Industries:
Manufacturing Plant, Construction works
UNIQUE SELLING POINT:
Energy saving
Capacity:
80-240T
Control system:
PLC+colorized Touching Screen
Burner:
Oil
Color:
Customer Require
Application:
High-grade Asphalt Road Paving
Control system:
PLC+colorized Touching Screen
Tank volume:
35 M3
Usage:
Asphalt Equipment Bitumen Tank
Optional Parts:
Bitumen Tank
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
30 days after receive the deposit
Port
Any Port Of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

Product Application

1. The modular design of  asphalt mixing plants makes containerized transportation and installation work quick and convenient, saving both time and money. The foldable handrails on the platform are new and unique in structure.

2. The circular belt feeder for the batching unit has a variable-frequency speed regulator to get high and low speed freely.

3. The high-efficiency and heat-preservation drying drum adopts German technology, and the special vanes and material curtains make heat exchange more sufficient.

4. The completely-closed vibrating screen adopting US technology carries out elliptical vibration with the vibrator placed outside.

5. The hot aggregate bin is equipped with a continuous level indicator which enables the operator to know the level of material at a glance.

6. The mixer adopting German technology has double reducers with a high-speed synchronization capacity.

7. The dust-collecting system adopts imported NOMEX bags which limit the density of dust discharged into the air within 50mg/m³, which is completely up to the environmental protection standard.

As a combination of the advanced technologies of the present time, our asphalt mixing plants are economical, environment-friendly, energy-saving and human-oriented.


Main Features

1. Asphalt Plant adopts modular structure, reasonable layout, simple and compact structure, suitable for container transportation, installation demolition convenient.
2.The Asphalt Plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
3.All the components can put into the container, can greatly reduce transport cost.
4.No foundation and modular design, can induce the install and disassembly time to the shortest.

Detailed Images

Asphalt mixing plants are designed for international market and could be customized according to different requirements, covering a diverse range of products from 40 TPH to 400 TPH.
LB series asphalt batching plant is the final solutions for customer requirements on quality , environment and economical investment.
With complete set of accessories,  asphalt batching plant can process different materials,10%-35% RAP, modified bitumen, emulsified bitumen etc , and also produced special products , such as SMA ( stone mastic asphalt),colorful asphalt ,additives of liquid ,fibers of granular or cotton-shaped .

Rated production
30-40t/h 4containers
50-60t/h 4containers
60-80t/h 4containers
90-120t/h 4containers
120-160t/h 5containers
160-200t/h 5containers
Cold aggregate contaniner
×6m3
×6m3
×9m3
×9m3
×11m3
×11m3
Dry cylinder
1.1m*4.2m
1.3m*5m
1.5m*6m
1.8m*7m
2.2m*8m
2.35m*9m
Bag dust-remover
CNM156
CNM240
CNM357
CNM476
CNM654
CNM832
Emission standard
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
Vibrating screen
1layers
4layers
4layers
4layers
3layers
5layers
Hot aggregate container
12t
12t
26t
26t
5/40t
40t
Mixing kettle capacity
500kg
750kg
1000kg
1500kg
2000kg
2500kg
Mixing cycle
45s
45s
45s
45s
45s
45s
Mineral powder tank volume
30t
30t
26+36t
26+36t
30+43t
30+43t
Asphalt tank volume
30000L
30000L
5000L
5000L
2*50000L
2*50000L
Heat conduction ail stove
200,000kcol/h
200,000kcol/h
300,000kcol/h
300,000kcol/h
500,000kcol/h
500,000kcol/h
Product container volume
50t
50t
90t
90t
110t
110t

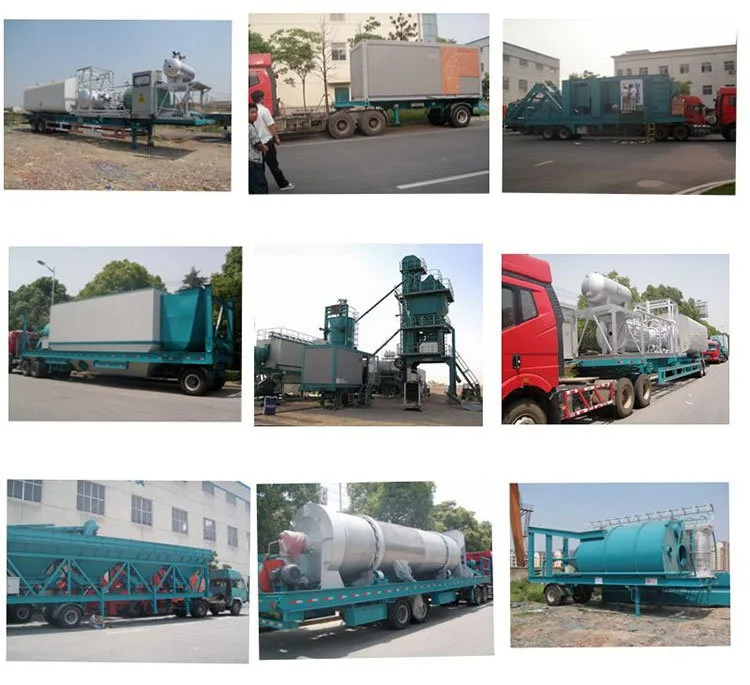

Packing & Delivery

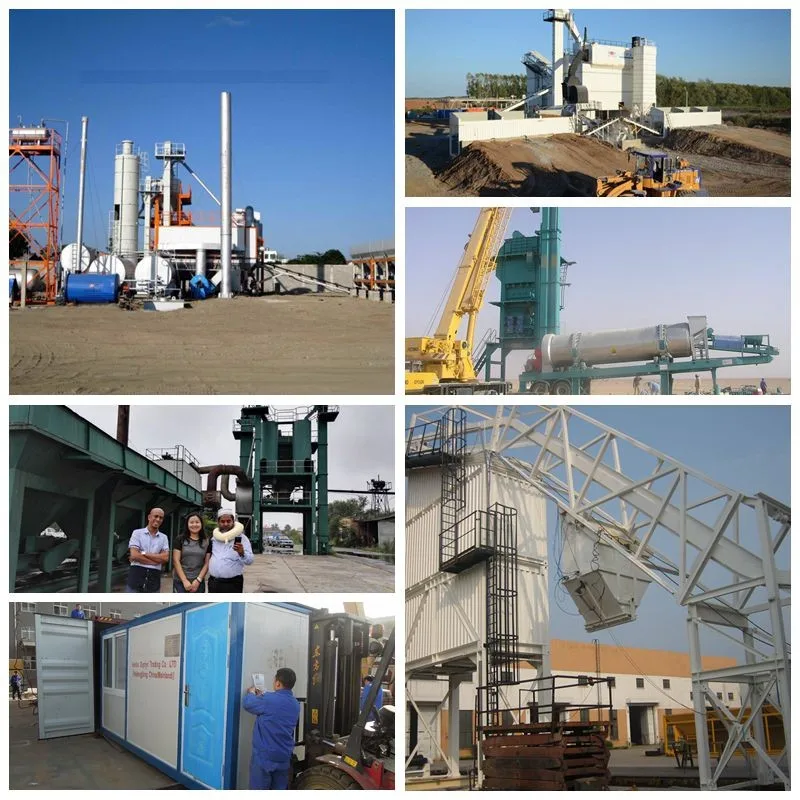

Construction Case
Our Service

1. Effective communication:
Any inquiry will be fast replied. Accurately convey customer's information. Help customer to control the goods quality.
2. In-time and reliable after sale service:
We have been keeping a very good cooperation relationship with factories. We can help customer to change the broken spare parts or send engineer to the local in-timely with low cost.
Warranty and after sale service:
1 year warranty. Engineer comes to the local for installation for free in the first month and free spare parts changing. If it is above 1 year, need customer charge the air tickets, visa and living expenses for the engineers to install in the local.
